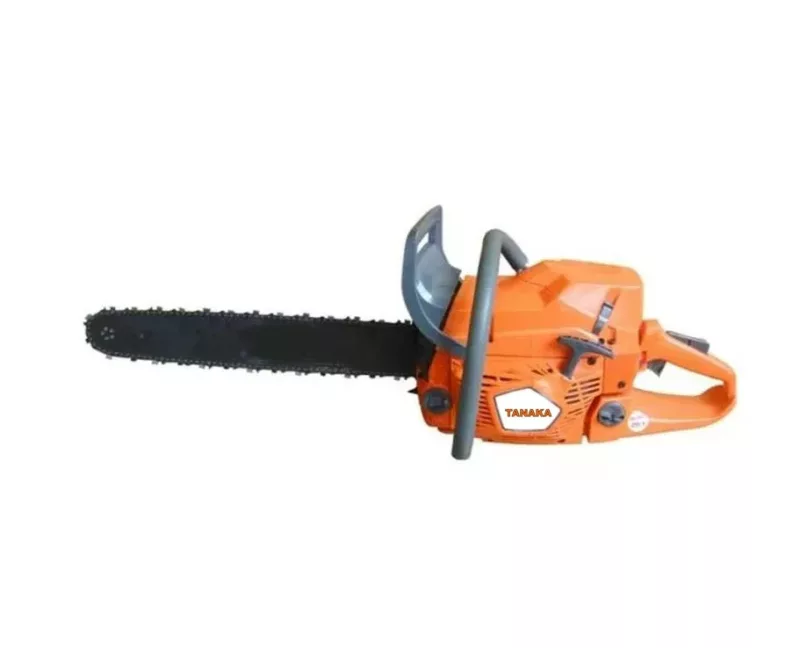

Tanaka CS72 Chainsaw with 70.7cc 2-stroke petrol engine and 22″ guide bar
THE PROFESSIONAL CHOICE
The Tanaka CS72 (272) chainsaw is the choice for the professional or heavy-duty domestic user.
The powerful 70.7 cc engine and 22” (55.88cm) Tanaka engineered cutting bar and chain, have been designed for the larger more demanding chainsaw jobs such as grounds maintenance, tree felling and topping and forestry work.
Specifications:
Engine:
CS72 Tanaka 2-Stroke Engine
Displacement cc: 70.7 cc
Cylinder Bore, mm: 50
Stroke mm: 36
Specified Engine Power (kW/r/min): 3.9 kW/9000 rpm
Horsepower (hp): 5.3 hp
Idle speed: 2700 rpm
Max engine / motor RPM: 12500
Cylinder bore, mm: 48
Stroke, mm: 36
Idling Speed: 2700 rpm
Type of Ignition System: CD
Spark Plug: NGK BPMR 7A / Champion RCJ 7Y
Electrode Gap, mm: 0,5
Carburetor Type: Walbro HD6B/ HD12B
Fuel Tank Capacity: 0,77 Liter
Oil Pump Capacity at 8,500 rpm, ml/min: 4 – 20
Oil tank Capacity: 0,42 Liter
Type of Oil Pump: Automatic
Weight without Bar & chains, empty Tank: 6,1 kg
Sound Power Level, measured dB(A): 114
Sound Power Level, guaranteed LWA dB(A): 115
Vibration Level Front Handle, m/s²: 3,5
Vibration Level Rear Handle, m/s²: 4.0
Chain/bar: 22” x 3/8 Bar Chain
Pitch, inch/mm: 3/8″ / 9,52
Thickness of Drive links, inch/mm: 0,058 / 1,5
Type of Drive Sprocket/number of teeth: Rim / 7
Warranty: 1 Year
