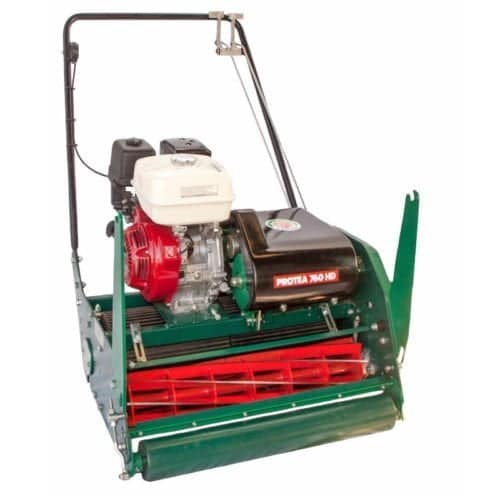

HD (Heavy Duty) Cylinder Mower Range
The machine can be purchased in the following sizes:
HD610 (24”) fitted with 5HP/6HP Engine
HD760 (30”) fitted with 9HP/10HP/12HP/13HP/14HP Engine
HD914 (36”) fitted with 12HP/13HP/14HP Engine
The machine offers the following features:
Dual Clutch system (the machine can independently drive without the engagement of the Cutting Cylinder)
8 bladed Cutting Cylinder and High Cut Bottom Blade (min. height: 6mm)
Rubberised Rear Rollers for additional traction
Can be converted to a Groomer, Verticutter, Scarifier or Sweeper with the purchase of additional cassettes
Specifications:
Change-over time from a Cutting Cylinder cassette to another cassette is only 15 minutes.
The HD760 and HD914 are fitted with larger engines and can be utilised in conjunction with a trailer seat, to transform the HD mower into a ride-on mower.
To sharpen the cutting cylinder without having to remove it from the mower, the Protea Backlapping machine can be used.
Engine 5HP-14HP
Blades 8 Blade Cutting Cylinder (reversible) and High Cut Bottom Blade (min. height: 6mm)
Rollers Rubberised Rear Rollers
Adjustments Front Roller adjustment for height of cut Cylinder adjustment to ensure quality of cut Rear Roller adjustment for levelling machine
Optional Extras Verticutter Cassette, Blade Type Scarifier Cassette, Pin-type Scarifier Cassette, Groomer Cassette, Nylon Sweeper Cassette, Backlapping Machine, Trailer seat
