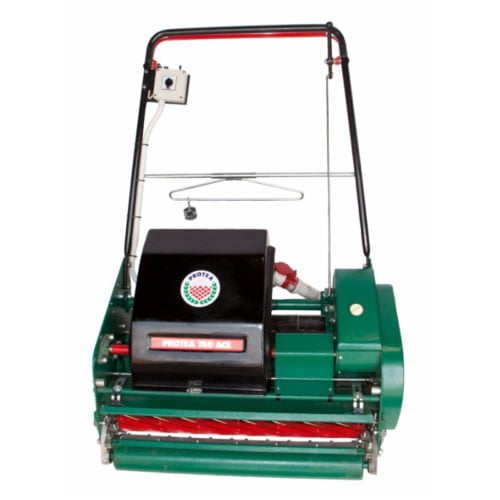

BG760 ACE 30” Variable Speed – Electric
Heavy Duty 1.5kW motor
16 Bladed Cutting Cylinder
Variable Speed Control (Potentiometer)
Backlapping Capable
Dead Man’s Bail Bar
Specifications:
The BG760 Ace Machine is an upgraded version of the conventional BG760 Bowling Green Mower.
Some of the following features outline the improvement to the conventional design:
Variable mowing speed, adjustable from the operator’s position, resulting in improved ease of use and quality of cut
Safety cut-out Handle with interlocked safety startup.
Rubberised operator’s handle and isolated control lever, which protects the operator from shock in the event of an electrical short.
The direction of the Cutting Cylinder can be reversed, allowing operators to back-lap (sharpen) their Cylinder without needing to remove the reel/send their cylinder to a sharpening facility.
Motor 1.5kW
Blades 16 Bladed Cutting Cylinder and Low Cut Bottom Blade (min. height: 2.5mm)
Rollers 4 sectioned Rear Roller Assembly, individually driven
Teasing Brush Yes
Adjustments Front Roller adjustment for height of cut Cylinder adjustment to ensure quality of cut Rear Roller adjustment for levelling machine
