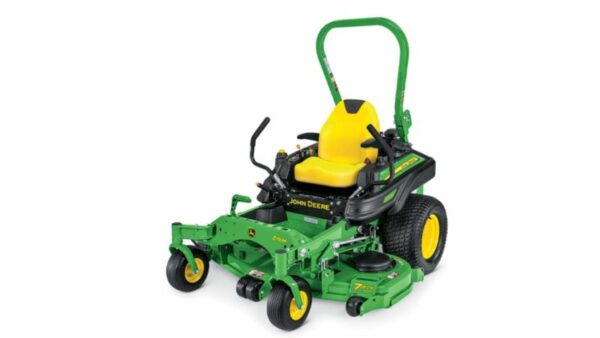

John Deere Commercial Z930M
ZTrak™ Zero-Turn Mower
Choose a John Deere lawn mower because your yard is more than a place to mow. That’s why our lawn tractors are built to tackle any job on your turf. With attachments for every season, you can mulch, haul, bag, plow, and more. Because enjoying your lawn should be a year-round activity. (Attachments is optional extra )
Specifications:
7-Iron™ PRO deck
Mulch On Demand™ Available
Gasoline Engine
Propane Option Available
Rear Discharge Deck
Engine Manufacturer/Model- FX801V
Engine Power- gross at 3,600 rpm / 25.5 hp / 19 kW
Fuel Tank Capacity- 43.5 liters
Mower Deck Size- 137, 152 cm
Blade Tip Speed- approximately 18,000 fpm
60 in. rear discharge: approximately 15,000 fpm
Transmission- hydrostatic
Speed Range- 0-16.1 km/h
Drive Wheels- 24 x 12-12
Caster Wheels- 13 x 6.5-6
WARRANTY
2 years limited warranty
ENGINE
Manufacturer/Model- FX801V
Power- gross at 3,600 rpm / 25.5 hp / 19 kW
Displacement- 52 cu in. (852 cc)
Total Cylinders- 2
Crankcase Capacity- with filter 2.3 liters
Oil Filter- full flow, replaceable
Lubrication- full pressure
Cooling- air
Air Cleaner- pre-cleaner
heavy-duty canister type with safety element
FUEL SYSTEM
Fuel Type- Petrol 93
Consumption- under normal conditions, load, operation, and dependent on loads and operating conditions 4.2-7.2 liters/hour
Fuel Tank Capacity- 43.5 liters
Comes with fuel tank switch/shut-off valve
ELECTRICAL SYSTEM
Charge System- 20 amp
Battery Voltage- 12 v
Cold Cranking AMP- 300 amp
Hour meter- standard, digital
Operator Presence Starting System- brake-n-go (hand)
DRIVETRAIN
Transmission- hydrostatic
Wheel Motors- tuff torq heavy-duty integrated piston wheel motor
Travel Speed- Speed range 0-16.1 km/h
Forward 0-16.1 km/h
Reverse 0-7.2 km/h
Speed And Direction Control- twin levers
Hydraulic Capacity- 5.6 liters
Filter- internal, replaceable
TIRES
Drive Wheels- 24 x 12-12
Load Rating- 4 PR
BRAKES
Dynamic Braking- twin levers
Park Brake- internal wet disk integrated in the transmission
Park Brake Actuation- hand brake
PTO
Type- electro-magnetic, 225 lb-ft (305 Nm)
Drive- v-belt
MOWER DECKS
Size- 137, 152 cm
Deck Thickness- 7 gauge / 0.18 in. / 4.6 mm
Discharge- side, Mulch On Demand™ system, rear
Height-Of-Cut Range- Increments
0.64 cm – 2.54-14 cm
Cutting Width- 137, 152 cm
BLADES
Length- varies by deck size
Thickness- 0.64 cm
Blade Tip Speed- approximately 18,000 fpm
60 in. rear discharge: approximately 15,000 fpm
Total blades; 3
WHEELS
Caster Wheel Type- flat free
Caster Wheels- 13 x 6.5-6
Front Anti-Scalp Rollers- RH, center, LH
Rear Anti-Scalp Rollers- standard
DIMENSIONS
Length- 213 cm
Width- with chute down, 173, 188 cm
rear discharge, 161.3 cm
Height- with ROPS up, 185 cm
with ROPS down, 119 cm
Weight- 578 to 619 kg
OPERATION
Slope Operating Limit- 20 degrees (10 degrees with material collection system installed)
Has rollover protective structure (ROPS)
