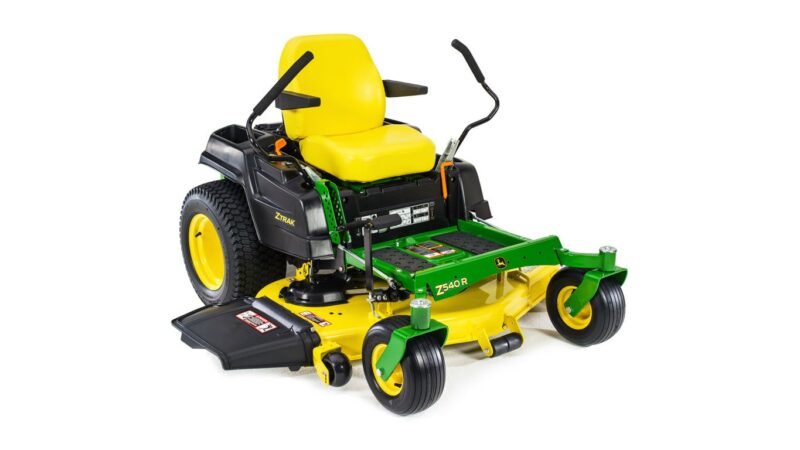

John Deere Z540R Residential ZTrak™ Mower with 48-in. High Capacity Deck 24hp
FEATURES
Engine is smooth and powerful V-twin design with features for reliability and long life
24 hp (17.9 kW) provides plenty of power.
Large 44.3 cu in. (726-cc) displacement provides plenty of torque
V-twin air-cooled design is efficient.
Excellent power and performance
Smooth, quiet power
Easy starts
Engine model FS730V
Many quality features are included.
Cast-iron cylinder liners provide a long-wearing surface for longer engine life.
Overhead valves allow the engine to breathe easily for excellent power and fuel economy.
Full-pressure lubrication is more effective.
Replaceable oil filter keeps the oil cleaner for longer engine life.
Dual-stage air cleaner thoroughly cleans engine intake air.
Electronic ignition contributes to fast starts.
Solenoid-shift starter for easy starts, even in cold weather.
Rear engine guard protects the engine and provides additional vehicle strength and integrity.
A flywheel alternator provides plenty of capacity to quickly recharge the battery and power electrical equipment, such as lights or a sprayer.
20-amp capacity
Regulated to keep the battery at a full charge, without risk of overcharging
Full-pressure lubrication system provides plenty of oil to the engines moving parts to ensure reliable operation and long life:
Replaceable oil filter keeps the oil cleaner for a longer engine life.
-Extends the time between oil changes
Full-pressure lubrication is more effective.
No-tools oil drain is convenient to use.
Specifications:
24 hp (17.9 kW) V-Twin petrol engine
Exclusive 48-in. high-capacity mower deck
14.5 km/h ground speed
23 x 10.5 rear tires for superior traction
WARRANTY
2 years limited warranty
ENGINE
Power- 24hp (17.9kW)
Model Number- FS730V
Displacement- 44.3 cu in. 726 cc
Cylinders- v-twin
Lubrication- full pressure with replaceable filter, capacity, 2.1 liters
Type- overhead valve
Battery- 12V 300 CCA
Choke/Speed Control- separate control levers
Cooling Method- air
Fuel Tank Capacity- 17 liters
Fuel Guage- fuel level sightline
DRIVE TRAIN
Dual Hydros- tuff torq TZ17-M with 2.5-cm axles
TRAVEL SPEED
Forward Speed- 0-14.5 km/h
Reverse Speed- 0-7.2 km/h
Speed And Direction Control- twin premium levers
Control Adjustment- 3-height/18 positions
CHASSIS
Frame- heavy-duty frame tubing
Primer/Paint- e-coat/powder
Front Caster Tires- 13×6.5-6
Front Caster Bearings- sealed ball bearings
Drive Tires- 23×10.5-12
Comes with hour meter, service interval decal, storage compartment, and cup holder
SEAT
Seat Back Height- high back with armrests, 50.8 cm
Fore-Aft Adjustment- while seated, 11.4 cm
Seat Suspension- 2 springs
LIFT SYSTEM
Type- foot lift and hand lever
Mower Cut Height- 2.5-10.2 cm
Cut Height Increments- 0.64 cm
Can preset cut height
MOWER DECK
Cut Width- 122 x 137 x 152 cm
Type- high-capacity side discharge
Mower Deck Material- 9 gauge 0.15 in. 3.8 mm
Mower Drive System- v-belt
PTO
Type- electric, 125 lb-ft 169 Nm
Drive- v-belt
DIMENSIONS
Wheelbase- 123.7 cm
Overall Length- 194.8 cm
Width-Without Mower- 121.4 cm
Width With Mower- 54 HC, 173.5 cm
Width With Mower When Deflector Raised For Storage- 54 HC, 173.5 cm
Height- 117.1 cm
Weight- with mower and fuel, with mower and fuel, 54 HC, 325 kg
SAFETY
Comes with operator presence system, park brake interlock and safety video
OPTIONAL ATTACHMENTS
Rear Bagger- 48 HC and 54 HC, 6.5 bu 229.1 L
Mounted Sprayer- 56.8 liters
Light Kit- dual headlight kit
Material Collection System- 48 HC and 54 HC, Power Flow? rear bagger, 6.5 bu 229.1 L
Can attach mulching system, double light kit, standard rubber floor mat and storage cover
ADDITIONAL INFORMATION
Mower wash port makes cleaning the deck easier
Flip-up foot platform for easy service access
18-position adjustable motion-control levers
