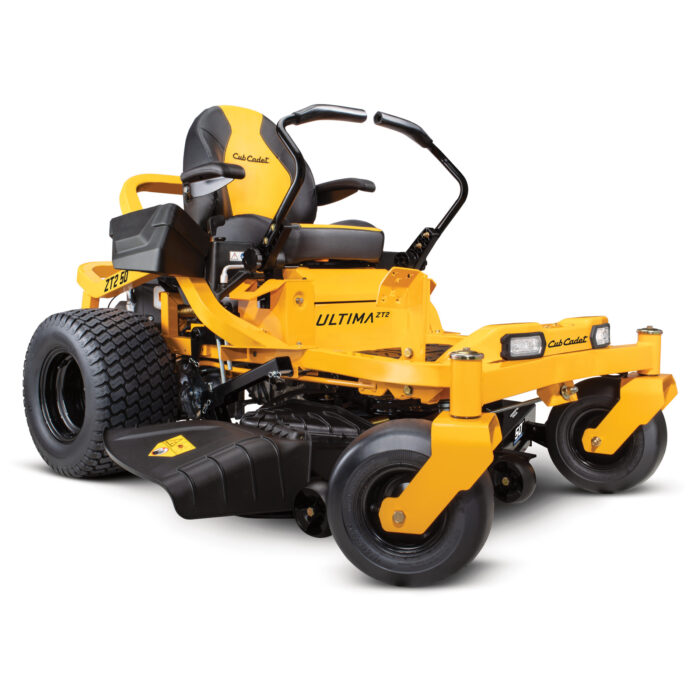

Cub Cadet Zero Turn 25 Kawasaki Engine 54″ deck
Zero-degree turning radius for ultimate maneuverability
3 adjustable anti-scalp deck wheels for a smoother cut
Electric PTO (power take-off) for fast and easy blade engagement
Comfortable high-back seat with dual suspension springs for a smooth ride
Greasable front caster wheels for longer bearing life
Accepts optional FastAttach accessories, including mulch kit, rear bagger, and rear storage rack
Specifications:
Engine Brand Kawasaki®
Engine Model FR Series
Engine Model Number 691V
Engine Displacement 726cc
Engine Output 23HP
Starter Type Electric
Fuel Tank Capacity 3.5 gal. US (13.25 L)
Cylinders Twin
Engine Start Ignition Key
Engine Oil Capacity 2.1 qt US ( 2 L)
Lubrication Fully pressurized
Charging System15 amp regulated
Fuel Gauge No
Governor Mechanical
Choke Separate Choke
Air Filter Single element
Oil Filter Yes
Fuel Delivery Carburetor
Battery
Battery 210 CCA
Battery Type AGM (Absorbent Glass Mat)
Battery Voltage 12V
Drive System
Transmission Tuff Torq TZ 350
Forward Speed 7 MPH / 11.3 km/h
Reverse Speed 3.5 MPH / 5.6 km/h
Drive System Hydrostatic
Cutting Deck
Deck Cutting Width 54 in
Deck Wash No
Deck Material 11-gauge steel
Deck Engagement (PTO) Electric
Deck Construction Fabricated
Blade(s) 3
Deck Lift Foot pedal with Dial Adjust
Cutting Height Range 1'' - 4.5''
Anti-Scalping 3 gauge wheels
Deck Positions 15
Chassis
Frame 2'' x 2'' tubular steel
Turning Radius 0°
ROPS No
Rear Tow Hitch Yes
Corrosion Protection Yes
Controls
Cruise Control No
Brakes Disc
Steering Control Lap Bars
Comfort
Seat Type 20" high back
Armrests Yes
Seat Adjustment Lever
Front Caster Suspension No
Wheels
Rear Tires 20"x 12"-8"
Front Tires 13"x 6.5"-6"
Tire Tread Turf Master / Multi Trac
Specifications
Series Ultima Series™ ZT
Additional Specifications
Hour Meter Yes
Mulch Kit Available separately
Headlight(s) Dual-LED
Cup Holder Yes
Operator Presence System Yes
Parking Brake Lap Bar Integrated
