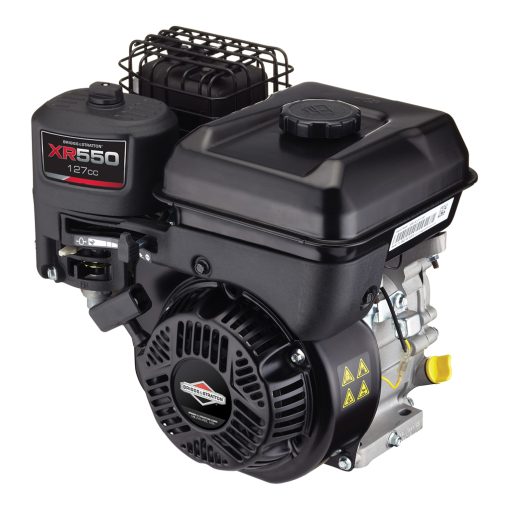

Briggs & Stratton XR550 Series™ – 4HP Keyway Shaft Rewind Starter
Briggs & Stratton XR550 Series™ – 4HP Keyway Shaft Rewind Starter
Briggs & Stratton general purpose horizontal shaft engines are built to be tough, reliable and efficient.
This engine is equipped with 4 HP / 7,41 Nm Gross Torque and 127cc.
Designed for frequent use in demanding work environments.
Lo-Tone™ Muffler
Delivers low noise and good tonal quality
Dual Ball Bearings
Provides added durability and extends engine life.
Cartridge Air Cleaner with foam pre-cleaner (dual element)
Provides improved protection against airborne debris entering the engine
Magnetron® Electronic Ignition System
Ensures maintenance free easy starting.
Cast Iron Sleeve
Adds integrity and durability that withstand wear and abuse while providing improved oil control.
Mechanical Governor
Controls the engine speed to deliver more usable power under heavy usage.
OHV Technology
Optimized performance that delivers longer engine life and improved fuel economy.
Float Feed Carburettor
Optimized fuel delivery for improved startability and superior performance.
Specifications:
Model XR550
DESIGN
Engine Design Single cylinder, 4-stroke, air-cooled, Overhead Valve
Cylinder Cast Iron Sleeve
Starter Type Rewind
SPECIFICATIONS
Gross Power 4 HP
Gross Torque 7.41 NM
Displacement 127 cc
Bore 62 mm
Stroke 42 mm
Fuel Tank Capacity 2.0 Litres
Oil Capacity 0.6 Litres
DIMENSIONS
Length 261 mm
Width 347 mm
Height 326 mm
Dry Weight 13.4 kg
PTO Shaft 19.05 mm x 61.5 mm
