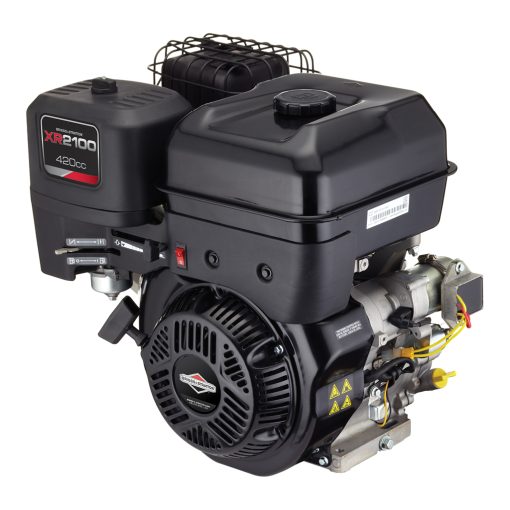

Briggs & Stratton XR2100 Series™ – 13.5HP Taper Shaft Rewind Starter
Briggs & Stratton XR2100 Series™ – 13.5HP Taper Shaft Rewind Starter
Briggs & Stratton general purpose horizontal shaft engines are built to be tough, reliable and efficient.
Equipped with 13.5 HP / 28,48 Nm Gross Torque and 420cc, the XR2100 engine is built for multiple tasks in the most demanding work environments.
Lo-Tone™ Muffler
Delivers low noise and good tonal quality
Dual Ball Bearings
Provides added durability and extends engine life.
Cartridge Air Cleaner with foam pre-cleaner (dual element)
Provides improved protection against airborne debris entering the engine
Magnetron® Electronic Ignition System
Ensures maintenance free easy starting.
Cast Iron Sleeve
Adds integrity and durability that withstand wear and abuse while providing improved oil control.
Mechanical Governor
Controls the engine speed to deliver more usable power under heavy usage.
OHV Technology
Optimized performance that delivers longer engine life and improved fuel economy.
Float Feed Carburettor
Optimized fuel delivery for improved startability and superior performance.
Specifications:
Model XR2100
DESIGN
Engine Design Single cylinder, 4-stroke, air-cooled, Overhead Valve
Cylinder Cast Iron Sleeve
Starter Type See Product Options
SPECIFICATIONS
Gross Power 13.5 HP
Gross Torque 28.48 NM
Displacement 420 cc
Bore 90 mm
Stroke 66 mm
Fuel Tank Capacity 6.47 Litres
Oil Capacity 1.1 Litres
DIMENSIONS
Length 499 mm
Width 370 mm
Height 443 mm
Dry Weight 31.0 kg
PTO Shaft J609 Taper
